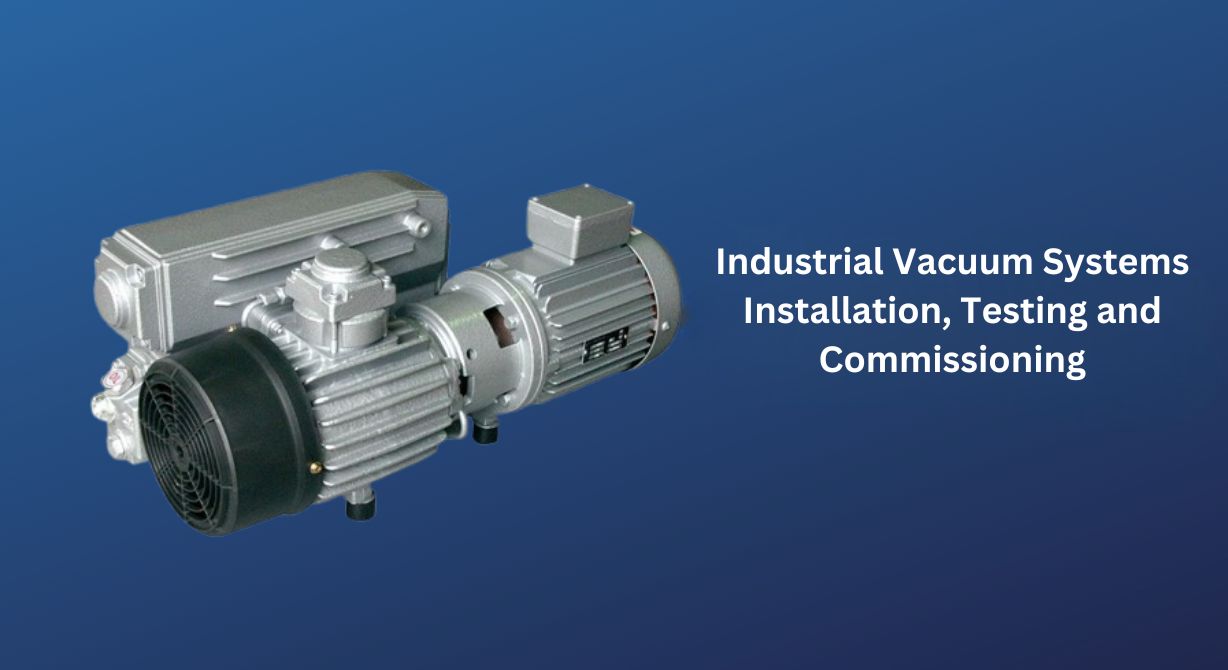

Industrial vacuum system installation is not merely a technical mounting step in modern production facilities; it is a fundamental engineering process that determines process reliability, energy efficiency, and maintenance strategies. Every vacuum line used across the plant forms the backbone of overall production capacity. The more accurate the design, the more controlled the installation, and the more disciplined the testing and commissioning steps, the more stable the production line becomes. Otherwise, a small error that goes unnoticed initially may turn into a serious issue that increases downtime and maintenance costs in the following periods. For this reason, many facilities prefer to follow the engineering standards of Gücüm Pump during installation phases.

The vacuum system commissioning process does not simply mean connecting equipment to power. Each pump, tank, pipeline, valve and instrumentation component must be positioned, tested and verified according to the process parameters defined during the project phase. Engineers observe both the vacuum level and flow behavior after installation to analyze how well theoretical calculations match real field conditions. Based on these analyses, pipe diameters may be revised, equipment placement may be adjusted or control parameters may be optimized.

If installation, testing and commissioning steps are handled separately, the vacuum system may eventually become prone to malfunctions, operate with high energy consumption, and behave inconsistently. Therefore, industrial vacuum installation should be handled as a single engineering chain, from project start to commissioning. Records kept at each stage serve as valuable references for future modernization and capacity-increase projects. Especially in central vacuum stations, the testing and commissioning stage becomes an integral part of the plant’s overall performance strategy. During this stage, Gücüm Pump application guidelines often serve as a critical reference point for many facilities.

How should you choose the right industrial vacuum infrastructure?

A successful vacuum system installation begins with a detailed infrastructure preparation phase before the pumps even arrive on site. Following a vacuum installation guideline, mechanical, structural and operational requirements are reviewed one by one. First, the floor load capacity, vibration behavior, environmental temperatures, maintenance access areas and operator circulation paths are analyzed for vacuum line installation. This analysis ensures that equipment is positioned not randomly but at the most optimal and safest locations.

When determining the pipeline route, not only the shortest path but also a route with minimal pressure loss, proper maintenance access, no obstruction of busy production areas and preserved safety distances must be considered. Vacuum piping design is one of the most critical elements of installation. Pipe diameter is calculated according to system flow requirements and target vacuum level. A diameter that is too small increases pressure losses, while one that is too large unnecessarily raises investment costs.

Correct slope angles, condensation risk management and proper positioning of condens collection points are also essential steps in infrastructure preparation. Suitable vibration pads, expansion joints and pipe supports must be planned. Incorrectly aligned, poorly supported or improperly selected materials in piping may result later in suction loss, cracks, leaks, noise increase or vacuum fluctuations. With engineering-focused preparation, the installation becomes more controlled and commissioning becomes far more predictable.

Which criteria should you select for mechanical installation verification?

Once physical connections are made during installation, the mechanical installation verification step begins. The goal is not merely to confirm that equipment is mounted and tightened, but to assess how well the entire system aligns with the design criteria. Chassis connections, anchor points, vibration isolation components, pump-motor alignment, tank mounting and load-bearing structures are all inspected individually. A misaligned pump-motor coupling may quickly result in bearing failure or coupling damage.

Checking whether the vacuum tank is level horizontally and vertically, confirming that flange connections are joined without stress, and ensuring that tank feet distribute weight evenly onto the floor are all critical parts of mechanical verification. Instrument placement is equally important. Pressure sensors, vacuum gauges, safety valves and level switches must be positioned for readability and maintenance access. An incorrect position complicates future calibration and service operations.

Once installation is complete, vacuum line leak analysis becomes mandatory to confirm the integrity of all system connections. Flanges, welded joints, o-ring connections and valve bodies are tested under pressure. If these tests are skipped, leaks may appear later, increasing energy consumption and causing unstable vacuum levels. Most high pressure-loss issues arise from small installation mistakes. Professional installation verification is essential to long-term, stable system performance. At this stage, many plants rely on Gücüm Pump technical criteria to ensure reliable verification.

Which verification method should you choose for vacuum system performance testing?

After mechanical installation, the system is not yet ready for production. Before commissioning, vacuum system performance tests must be carried out. These tests are crucial for both safety and performance. Pressure testing ensures that pipelines, tanks and fittings can withstand their operating pressure range. During the test, pressure is monitored over a defined period to detect abnormal pressure drops that may indicate leaks.

Next, leak testing is performed. Special test gases, leak sprays or sensor-equipped leak detectors reveal even the smallest leaks. Leak control is not only essential for energy efficiency but also for safety in chemical processes. Some gases leaking from vacuum lines may pose health hazards or create explosive atmospheres. Therefore, test protocols must be executed precisely.

In addition to leak detection, performance values are also verified. Vacuum level measurement, pressure-drop analysis and verification of the vacuum performance curve enable comparison between catalog performance and real-world operation. Load simulations are especially important in central vacuum stations to assess vacuum stability under actual production conditions. All test results are recorded for future reference.

Which commissioning steps should you apply to make the purchased vacuum system production-ready?

The vacuum system commissioning procedure begins after installation and testing, ensuring full compatibility with production. During initial power-up, pumps and auxiliary equipment are started under controlled conditions. Current draw, vibration levels, temperature rise and noise levels are monitored. These observations reveal the quality of installation and electrical connections.

Another key step is the adjustment of control panel parameters according to actual process requirements. Vacuum setpoints, automatic start-stop logic, staged pump activation, emergency stop functions, alarm thresholds and monitoring features are configured at this stage. Indicators on the operator panel must match production goals and maintenance strategies.

Initial calibration is the third pillar of commissioning. Pressure sensors, flow meters, temperature sensors and level indicators are verified using calibration devices. Calibration errors are among the main causes of vacuum fluctuation problems in production. Accurate sensor readings ensure correct decisions by the automation system. When commissioning is completed, the vacuum system is not only theoretically but also practically compatible with factory process conditions.

Which operational checks should you choose to verify the process compatibility of the vacuum system?

Generating vacuum indicates that installation and testing phases are complete; however, operational checks are essential to verify full process compatibility. Process compatibility testing examines whether the vacuum system meets production speed, material properties, cycle times and in-line dynamics. For example, in a packaging line, if products must be shaped by vacuum within seconds, the pump and pipeline must meet this performance consistently in every cycle.

Thermal endurance is verified under real load: pump body temperature, motor heating and oil temperature changes are monitored. Excessive temperature rise may require ventilation improvements, supplemental cooling or operational adjustments. Noise level assessments ensure operator comfort and determine whether sound insulation measures are needed.

Pipeline slope optimization plays a crucial role in preventing condensation issues. If liquid accumulation is detected during commissioning, slopes are re-adjusted, drainage points added, and condens collection systems strengthened. Operational checks are also essential for energy efficiency. By analyzing process needs, unnecessary deep vacuum levels are avoided, preventing excessive energy consumption.

Which checklist should you use to confirm installation quality?

In professional vacuum projects, commissioning is managed with a standardized checklist. The commissioning checklist ensures that both technical and operational details are systematically verified. The first stage includes inspection of electrical, mechanical and instrumentation connections. Power cables, terminal tightness, grounding, fuse ratings and motor protection relays are all verified.

Mechanical checks include pump rotation direction, coupling alignment, belt tension, vibration isolation, tank mounting and pipe support conditions. The instrumentation section covers sensor connections, signal cables, PLC communication tests and indicator values on the panel. Safety and insulation tests identify risks for operators and maintenance personnel, completing a crucial safety step.

Performance test records are created, and all critical commissioning data is archived with management approval. These records serve as future benchmarking references. Once all checklist items are confirmed, the system is verified as compliant with both design criteria and real-world operating requirements.

Which model should you prefer for vacuum automation integration?

In modern industrial plants, vacuum systems have evolved from purely mechanical equipment into integrated digital monitoring and automation components. With automation integration during commissioning, operators and maintenance teams can monitor all critical parameters—pressure, flow, temperature, energy consumption, run time, start-stop count and alarms—from a single platform.

Energy-efficient operation becomes even more effective with automation. In central vacuum stations with multiple pumps, the control system optimizes load sharing, adjusting pump count as needed to avoid unnecessary energy use. The most efficient pump combinations are identified through long-term data, enabling continuous optimization.

Digital monitoring technologies detect potential issues before they escalate. Gradually rising temperatures, abnormal vibration patterns or small vacuum fluctuations serve as early warnings. Planned maintenance replaces unplanned downtime. Automation integration secures long-term performance, supporting sustainable production goals.

How should you choose the correct vacuum investment process?

Industrial vacuum installation is not a random sequence of steps but a complete engineering chain extending from installation to testing and commissioning. Each stage directly affects production efficiency, energy consumption, maintenance continuity and process safety. A minor alignment error during installation may cause a leak during testing, and a small unnoticed performance deviation may lead to vacuum instability in production.

Process-improvement engineering teams analyze installation, testing and commissioning records to guide future modernization projects. When factories undertake capacity increases, energy-efficiency initiatives or new production lines, past commissioning reports become essential reference materials.

Facilities seeking a sustainable vacuum infrastructure treat vacuum systems not as auxiliary equipment but as strategic assets central to production planning. Engineering effort invested in installation, testing and commissioning returns as lower failure rates, reduced energy cost and more stable production performance. Thus, the vacuum system becomes a powerful backbone that enhances competitiveness, improves process quality and keeps maintenance costs under control.
