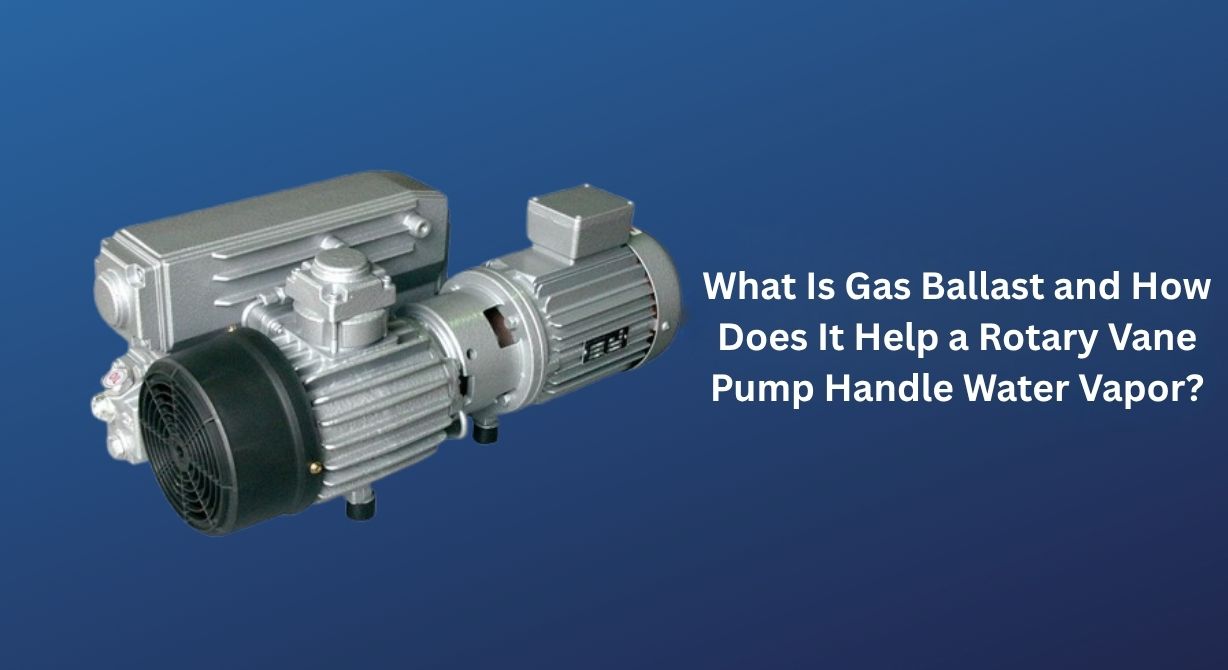

Rotary vane (oil-sealed) vacuum pumps are a popular choice in many applications thanks to their water-free operation and compact design. But one of their most sensitive points is what happens when the gas stream being pumped contains water vapor: that vapor can come into contact with the pump's oil and, over time, degrade it. To manage this, rotary vane pumps use a feature called "gas ballast." This article covers what gas ballast is, how it works, and why it matters in processes involving water vapor.
Table Of Contents
- Why Does Water Vapor Cause Problems in a Rotary Vane Pump?
- What Is Gas Ballast, and How Does It Work?
- Why Does Gas Ballast Slightly Reduce Vacuum Level?
- What Does the Maximum Water Vapor Capacity Value Mean?
- When Should Gas Ballast Be Opened or Closed?
- How Does Gas Ballast Affect Oil Life?
- Frequently Asked Questions
Why Does Water Vapor Cause Problems in a Rotary Vane Pump?
A rotary vane pump relies on a film of oil filling the volume between the rotor and the casing to carry out compression. This oil provides sealing, lubricates the moving parts, and carries away part of the heat generated during compression. When the incoming gas stream contains water vapor, a specific risk emerges: as the gas volume shrinks during compression, the partial pressure of the water vapor inside it rises along with it. If that partial pressure reaches or exceeds water's saturation pressure at the prevailing temperature, the vapor condenses into liquid.
When this condensation happens inside the pump, before the gas is exhausted, it becomes a real problem: the condensed water mixes into the pump oil. Water mixed into oil weakens its lubricating properties, changes its viscosity, sets the stage for corrosion on internal surfaces, and can force earlier-than-expected oil changes over time. That's why rotary vane pumps running on vapor-laden processes need a mechanism to prevent this condensation.
What Is Gas Ballast, and How Does It Work?
Gas ballast is a valve-and-channel system that admits a controlled amount of dry atmospheric air into the compression chamber before compression is complete. This extra air mixes into the compression chamber at a specific point in the compression cycle, before the gas reaches its point of maximum compression.
The underlying logic is straightforward: the dry air added to the system increases the total gas volume in the chamber. Because total volume increases, the partial pressure of the same amount of water vapor stays below water's saturation pressure even at the highest point of compression. As a result, the water vapor is discharged through the exhaust port in gas phase, without condensing inside the pump — and little or no water ends up mixed into the oil.
Why Does Gas Ballast Slightly Reduce Vacuum Level?
This protection gas ballast provides doesn't come free. Adding extra air into the compression chamber slightly reduces the ultimate vacuum level the pump can reach, because it introduces an additional external gas load into the system. This relationship is clearly visible in Gücüm Pompa's rotary vane vacuum pump table: with gas ballast closed, the pumps can reach down to 0.5 mbar (1 mbar on smaller models), while with gas ballast open, that figure rises to 1.5 mbar across all models.
This difference is a direct consequence of how gas ballast works: with the ballast open, the pump settles at a slightly "shallower" vacuum, but in exchange, it's protected against water vapor. That's why gas ballast is designed as a control element to be switched on and off as needed, rather than something left permanently open.
What Does the Maximum Water Vapor Capacity Value Mean?
Gücüm Pompa's rotary vane vacuum pump table also lists a "Maximum Water Vapor Capacity (kg/h)" value for each model. This figure indicates how many kilograms of water vapor per hour the pump can safely discharge, with gas ballast open, without condensation risk. According to the catalog, this value ranges from a modest 0.1 kg/h on the small GPM 11 model up to 5.7 kg/h on the larger GPM 308 model.
This figure matters a great deal for process selection: if the water vapor load in the process exceeds the selected pump's maximum water vapor capacity, the risk of internal condensation may persist even with gas ballast open. It's therefore worth selecting a model based on this water vapor value, not just its m³/h capacity.
When Should Gas Ballast Be Opened or Closed?
Gas ballast is typically kept open during periods when the process's moisture or vapor load is high — most notably at the start of an evacuation cycle, when the system is still near atmospheric pressure and moisture content is at its highest. As evacuation proceeds and moisture in the system drops, gas ballast can be closed to let the pump reach a deeper vacuum.
In some applications, where the process continuously involves moist or vapor-laden gas, keeping gas ballast permanently open may be the right choice — trading off some ultimate vacuum depth in favor of protecting the oil. The correct approach depends on the process's moisture profile and the target vacuum level.
How Does Gas Ballast Affect Oil Life?
Using gas ballast correctly and consistently has a direct impact on pump oil life. Water mixing into oil isn't just a momentary issue — over time it can degrade the oil's lubricating ability, promote rust on internal surfaces, and cause premature wear on components such as bearings and seals. Opening gas ballast at the right times helps reduce the risk of this kind of degradation.
As a maintenance practice, if some moisture has already accumulated in the pump oil, running the pump unloaded for a period with gas ballast open can help drive that moisture out through evaporation. This is a general maintenance principle; the specific duration or procedure should follow Gücüm Pompa's own operating manual.
Frequently Asked Questions
Should Gas Ballast Always Be Kept Open?
No. Because gas ballast slightly reduces vacuum level, it's recommended to open it only when there's a risk of water vapor or moisture. If the process gas stream is completely dry, or the deepest possible vacuum is the goal, gas ballast can be closed.
Why Does the Pump Reach a Shallower Vacuum With Gas Ballast Open?
Gas ballast admits extra dry air into the compression chamber to prevent water vapor from condensing, but because that extra air adds a gas load to the system, the ultimate vacuum level the pump can reach rises slightly (becomes shallower). This is a natural consequence of how gas ballast works.
What Happens If the Water Vapor Load Exceeds the Pump's Capacity?
If the process's water vapor load exceeds the selected pump's catalog-rated maximum water vapor capacity, condensation risk inside the pump may persist even with gas ballast open. In that case, selecting a model with higher water vapor capacity, or supporting the process with pre-drying, should be considered.
How Can You Tell If Water Has Mixed Into the Oil?
A change in the oil's color or appearance — turning cloudy or taking on a milky look — is a common sign that water has mixed in. When this happens, checking the oil and changing it if necessary helps protect the pump's internal components.
