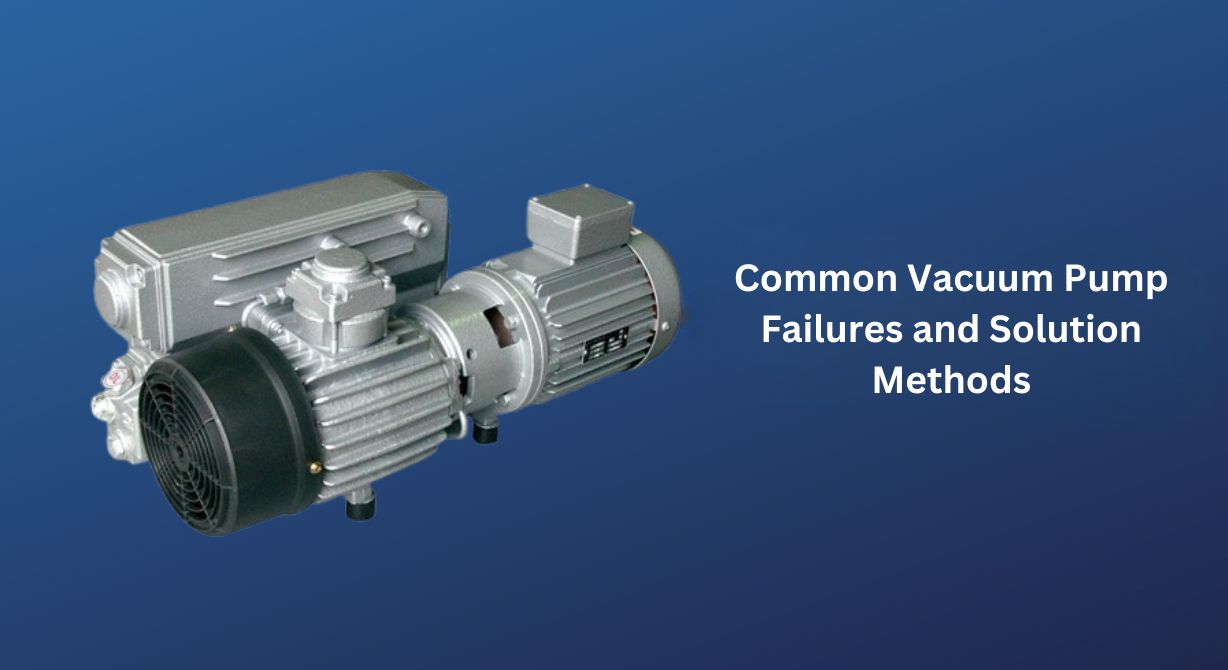

The most reliable way to handle vacuum pump failures is to work from the symptom back to the cause. This article brings together the most common failures, their likely causes and practical corrective steps. The examples are based mainly on oil-lubricated rotary vane vacuum pumps; in liquid ring vacuum pumps, other checkpoints come to the fore, such as service water quality and flow, scale build-up and the condition of the mechanical seal.
Table of Contents
- Why Do Vacuum Pump Failures Require a Systematic Approach?
- What Are the Causes and Solutions for Low Vacuum?
- What Are the Sources of Excessive Heating Problem and Intervention Methods?
- What Could Be the Causes of Excessive Noise and Vibration?
- What Does Rapid Contamination or Depletion of Pump Oil Mean?
- What Are the Possible Causes and Solutions If the Motor Is Drawing Excessive Current?
- What Could Be the Reason If the Pump Starts But Does Not Create Vacuum?
- What Causes Oil Carryover from the Exhaust and How to Prevent It?
- In Which Cases Is Professional Service Required for Vacuum Pump Repair?
- Frequently Asked Questions
Why Do Vacuum Pump Failures Require a Systematic Approach?
Vacuum pump failures are complex technical problems that contain multiple possible causes behind surface symptoms. A single symptom such as low vacuum may be fed from different sources such as oil degradation, filter clogging, sealing loss, or mechanical wear. Trying to eliminate the symptom without identifying the cause results in superficial intervention and the problem reappears in a short time. Pump repair made without correct diagnosis turns into both time and resource waste.
Systematic failure analysis begins with an inquiry process covering when the symptom started, under which conditions it appeared, the last maintenance date, and operating conditions changed since that date. Then measurement data, observation findings, and mechanical inspection results are evaluated holistically to detect the root cause. This is the step most often overlooked: intervention should be made when the root cause is understood, not when the problem is felt.
What Are the Causes and Solutions for Low Vacuum?
Low vacuum, i.e. the pump's inability to reach the target pressure or inability to maintain it after reaching, is one of the most frequently encountered vacuum pump failures in industrial applications. The first place among possible causes is system sealing loss; external air entry from flange connections, cover gasket, measurement device connection points, or hose joints constantly disrupts the vacuum created by the pump. To detect sealing loss, the system should be pressurized and all connection points should be checked with soap foam or ultrasonic detector.
The second common cause is oil degradation. Oil mixed with moisture, neutralized acid, or reduced viscosity cannot form the sealing film between rotor and stator sufficiently; even if the pump appears to be working, vacuum performance decreases significantly. Checking whether the vacuum value improves after oil change is a quick verification method for this cause. The third cause is worn rotor vanes; as the vanes wear, their contact with the stator wall weakens and sealing effectiveness decreases. Vane wear can be detected by visual inspection and resolved by replacement.
What Are the Sources of Excessive Heating Problem and Intervention Methods?
Excessive heating in a vacuum pump is a serious operating problem that both shortens mechanical life and prepares the ground for sudden failure. The most common source is insufficient or degraded lubrication; low oil level or deteriorated oil quality increases friction between moving parts and accelerates heat production. The first step to check is always oil level and oil quality; if the temperature normalizes after oil change, the source of the problem is lubrication.
The second important source is insufficient ventilation and cooling. Dust accumulation preventing air circulation around the pump, keeping the pump enclosure closed, or the ambient temperature exceeding the nominal operating range causes excessive heating. Regular cleaning of cooling fins and operating the pump in a location with sufficient air circulation are basic measures. In addition, operating under excessive load, i.e. forcing at much lower pressure for a long time, partial clogging where gas passage is blocked, and incorrect sizing are among other common sources of heating problems.
What Could Be the Causes of Excessive Noise and Vibration?
Noise and vibration that did not exist at the beginning or increased over time in a vacuum pump is an early sign of a mechanical problem and should never be ignored. Bearing wear is the most common source of these symptoms; a damaged bearing first manifests itself as a low-frequency hum, as it progresses the noise level increases and the vibration spectrum expands. Monitoring bearings with periodic vibration analysis is the most effective method for determining replacement time predictively.
Rotor imbalance is also an important cause of excessive vibration; contamination buildup, rotor vane breakage, or manufacturing defect can disrupt rotor balance and cause high vibration. Wear or misalignment of coupling components also produces characteristic vibration and noise; alignment between motor and pump should be checked and coupling elements should be inspected periodically. Loosening of the pump body connection bolts is a simple mechanical cause that increases the severity of vibration and is often neglected; regular bolt tightening control eliminates this risk.
What Does Rapid Contamination or Depletion of Pump Oil Mean?
Rapid contamination of oil in a much shorter time than normal is a strong indicator that there is a contaminant in the process gas. Moisture-laden process gas mixes with oil to form an oil-water emulsion; the oil takes on a milky white and foamy appearance, its viscosity decreases, and lubrication effectiveness is rapidly lost. Mixing of acid vapors with oil creates a corrosive environment by neutralizing the oil, and pump internal metal surfaces are damaged from this environment. In both cases, adding moisture-retaining or gas-cooling pre-components to the gas inlet and shortening the oil change period are priority intervention steps.
Rapid depletion of oil indicates a different problem, namely oil carryover or internal leakage. In cases where the exhaust oil separation filter is clogged, the resulting back pressure forces the oil out with the exhaust gas; when a sudden increase in oil consumption is observed, the exhaust filter should be the first control point. Damage to the shaft seal can also cause oil to leak out; oil stain formation under the pump is the most obvious visual sign of this situation. The Gücüm Pompa technical team can work with you to assess the causes of oil-related failures.
What Are the Possible Causes and Solutions If the Motor Is Drawing Excessive Current?
The motor operating above nominal current indicates that the mechanical load of the pump has increased or there is a problem in the electrical system. The most common cause of mechanically induced excessive current is insufficient lubrication; low oil or deteriorated oil increases friction, causing the motor to have to produce more torque. Oil control and change is the first intervention step in this case.
Continuous forcing of the pump at much lower pressure than the expected operating pressure can also cause excessive load; incorrect adjustment of the bypass valve or circuit design error prepares the ground for this situation. In case of rotor vane jamming or mechanical locking due to foreign particle entry, the motor excessive current protection fuse may activate and stop the pump; this situation indicates a mechanical problem requiring emergency intervention. Among electrical causes, phase imbalance, low voltage, or motor winding failure can also manifest with excessive current symptom; electrical measurement and mechanical inspection should be carried out in parallel.
What Could Be the Reason If the Pump Starts But Does Not Create Vacuum?
The situation where the motor is running but no vacuum is created in the system, although surprising at first glance, can be reduced to a few clear causes. The most frequently encountered cause is the inlet valve remaining closed; an inlet valve that is not opened after service or closed due to failure means that the pump cannot connect to the system. A large leak in the pipeline or a completely open valve also prevents vacuum formation by causing air entry exceeding the pump's capacity.
Excessive deterioration of rotor-stator tolerances, especially in pumps that have been left unmaintained for a long time, can cause mechanical pumping to become almost completely ineffective. Incorrect rotation direction is also among the frequent but easily overlooked causes of no vacuum formation; phase sequence error originating from electrical connection causes the motor to rotate in reverse. Motor rotation direction should be verified with a phase sequence test device and if necessary, the position of two phases should be changed.
What Causes Oil Carryover from the Exhaust and How to Prevent It?
Oil carryover from the exhaust line is a failure symptom that should be taken seriously because it both creates environmental pollution and fire risk and increases oil consumption. The most common cause is a clogged exhaust oil separation filter; the back pressure created by the clogged filter forces the oil out with the exhaust gas. Exhaust filter change usually solves the problem directly; if carryover continues after change, a deeper cause should be investigated.
Keeping the oil level higher than necessary also causes oil carryover; excess oil is mechanically held by the rotor and mixes with the exhaust gas. Not exceeding the maximum mark line during filling and controlling the oil level during operation prevents this cause. Decreased viscosity of the oil, i.e. using deteriorated or wrong specification oil, also increases carryover. The Gücüm Pompa technical team can help you choose spare parts and oil that match your pump's specification, which helps avoid failures caused by unsuitable products.
In Which Cases Is Professional Service Required for Vacuum Pump Repair?
While some vacuum pump failures can be diagnosed and resolved within the business, some situations require professional service intervention. Rotor and stator renewal, bearing change, shaft revision, and comprehensive mechanical restructuring are interventions requiring special tools, measurement equipment, and technical knowledge. Bearing assembly made without alignment or rotor placed with incorrect tolerance prepares the ground for new and more serious failures in a short time.
Professional service support is recommended in any of the following situations: performance decline that does not improve despite multiple interventions, mechanical noises containing metallic sound, mechanical resistance and vibration felt during rotation, presence of metal chips in oil, and electrical failures due to motor winding problems. These symptoms indicate advanced mechanical damage inside the pump; delayed intervention both increases repair cost and time loss. Correct diagnosis and timely service ensures protection of the investment by postponing the need for pump replacement in the long term.
Frequently Asked Questions
If the Vacuum Pump Is Running But Cannot Provide Sufficient Vacuum, What Is the First Point to Check?
The first control point is system sealing. All line connections, valves, and measurement device connections before the pump should be checked with soap foam or ultrasonic detector. If sealing problem is ruled out, oil quality, filter condition, and rotor vane wear should be examined in order.
What Color Should Vacuum Pump Oil Be and What Does Color Change Mean?
Fresh vacuum pump oil has a clear appearance between light yellow and amber. Milky white or foamy appearance indicates moisture mixing, dark brown or black color indicates excessive heating or oxidation, and cloudy appearance containing metallic shine indicates metal particle presence due to mechanical wear. In all three cases, the oil should be changed immediately.
What Should Be Done If the Vacuum Pump Is Overheating?
The pump should be stopped and first oil level and oil quality should be checked, then cooling fins and air inlet grilles should be cleaned. Ambient temperature and ventilation conditions should be evaluated, and the possibility of operating under excessive load should be examined. If these controls do not solve the problem, service should be called for mechanical inspection.
Does the Vacuum Pump Fail Gradually or Suddenly?
Both models can be seen. Oil degradation, filter clogging, and rotor wear manifest as gradual performance decline; therefore, symptoms may not be noticed for a long time. Bearing breakage, foreign object entry, or electrical failure can cause sudden and complete failure. Regular performance monitoring is the most effective way to detect gradual deterioration early.
In Case of Vacuum Pump Failure, Should Spare Parts Be Installed or Should the Pump Be Renewed?
The decision should be made according to the age of the pump, the scope of the failure, and the renewal cost. When the pump has completed most of its design life, repair cost approaches the price of a new pump, and multiple critical components fail simultaneously, renewal is usually the more economical solution. Making this analysis together with manufacturer technical support reveals the healthiest decision.
